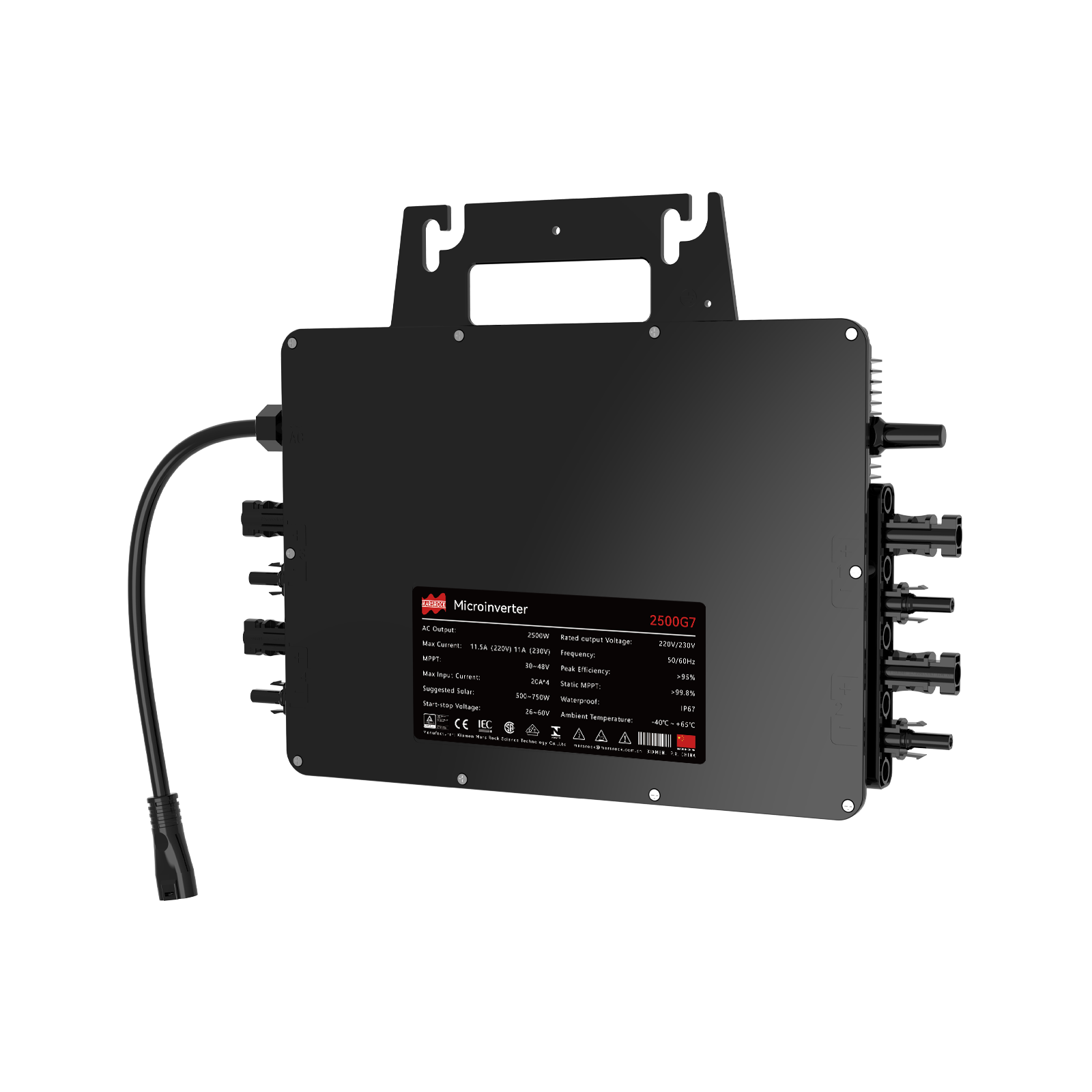

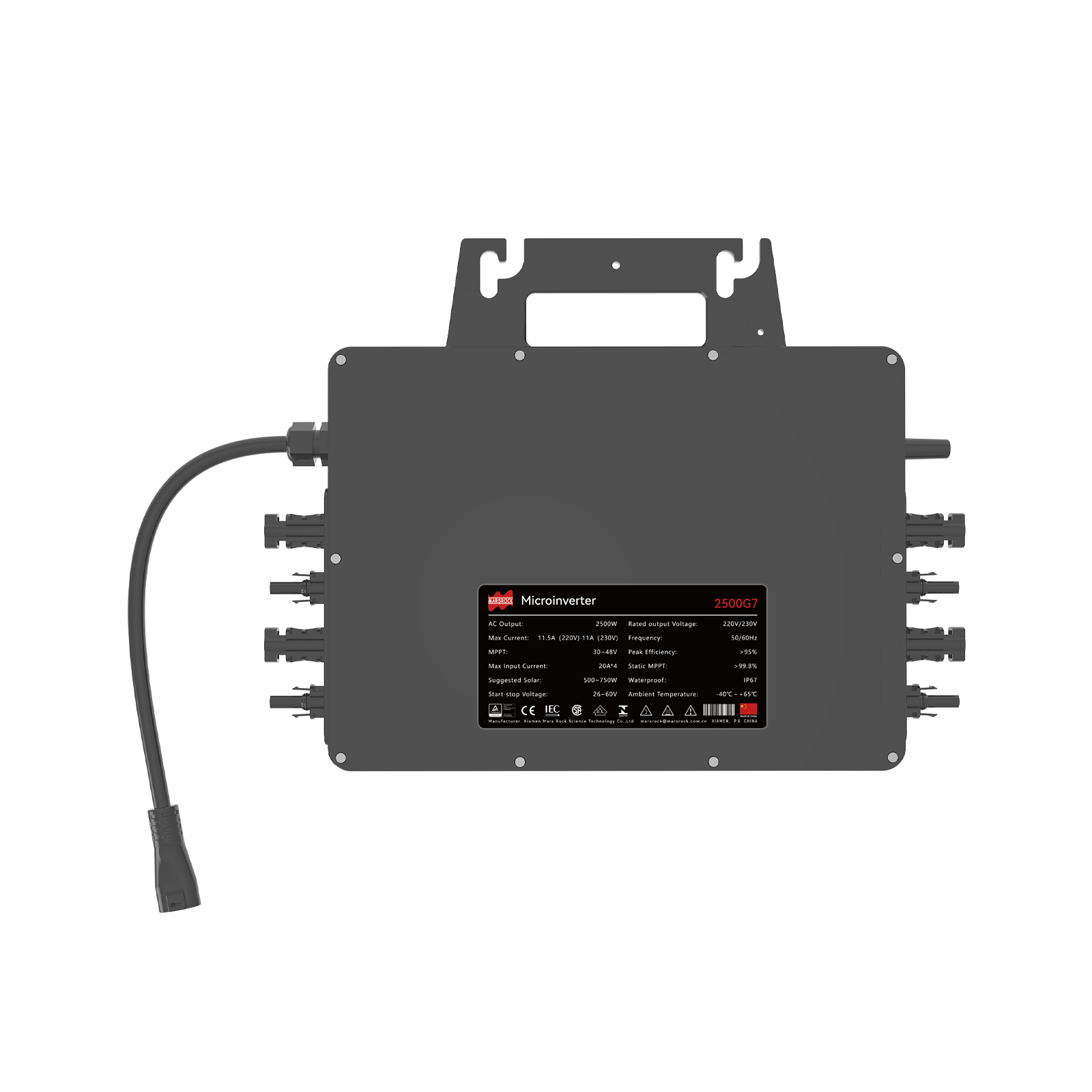

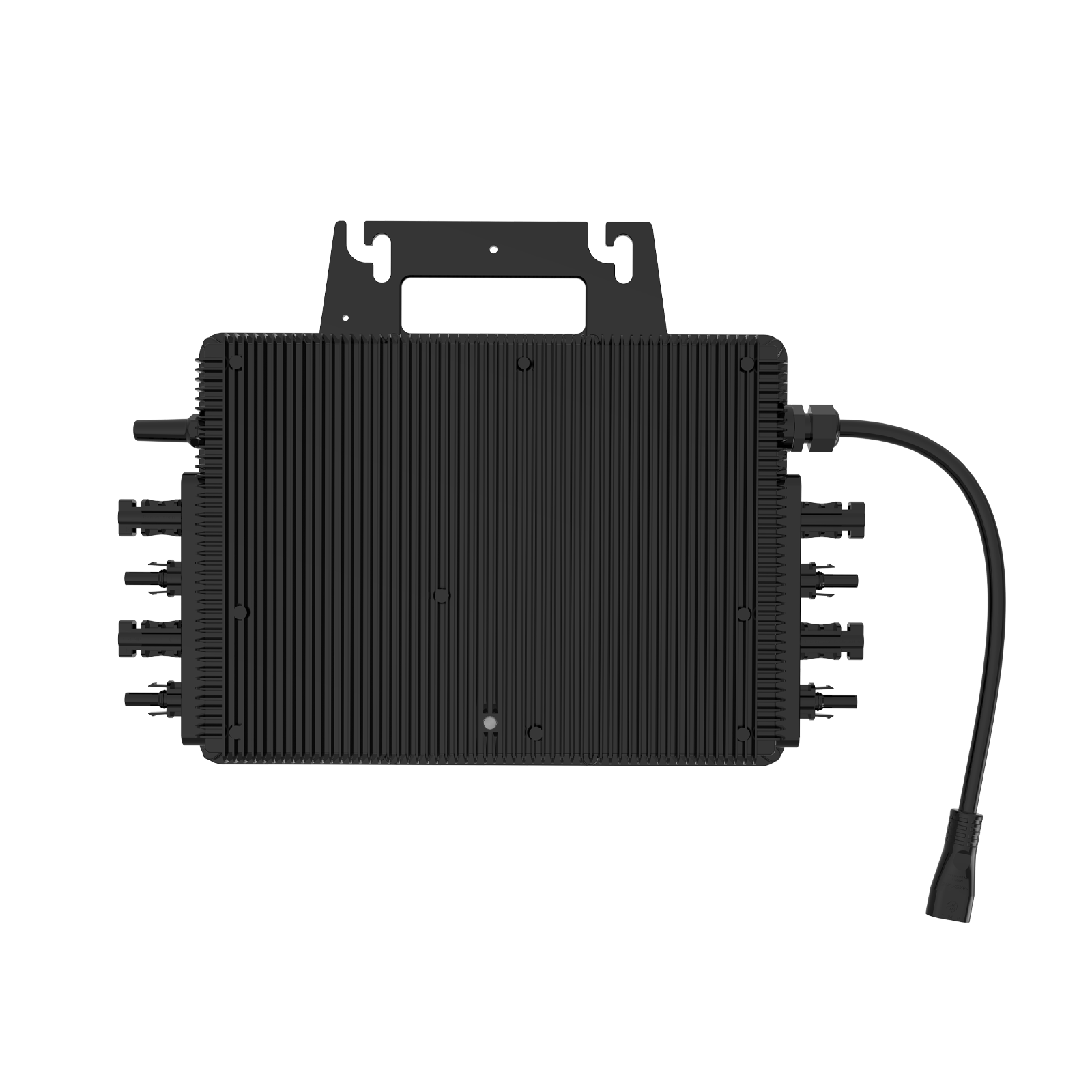

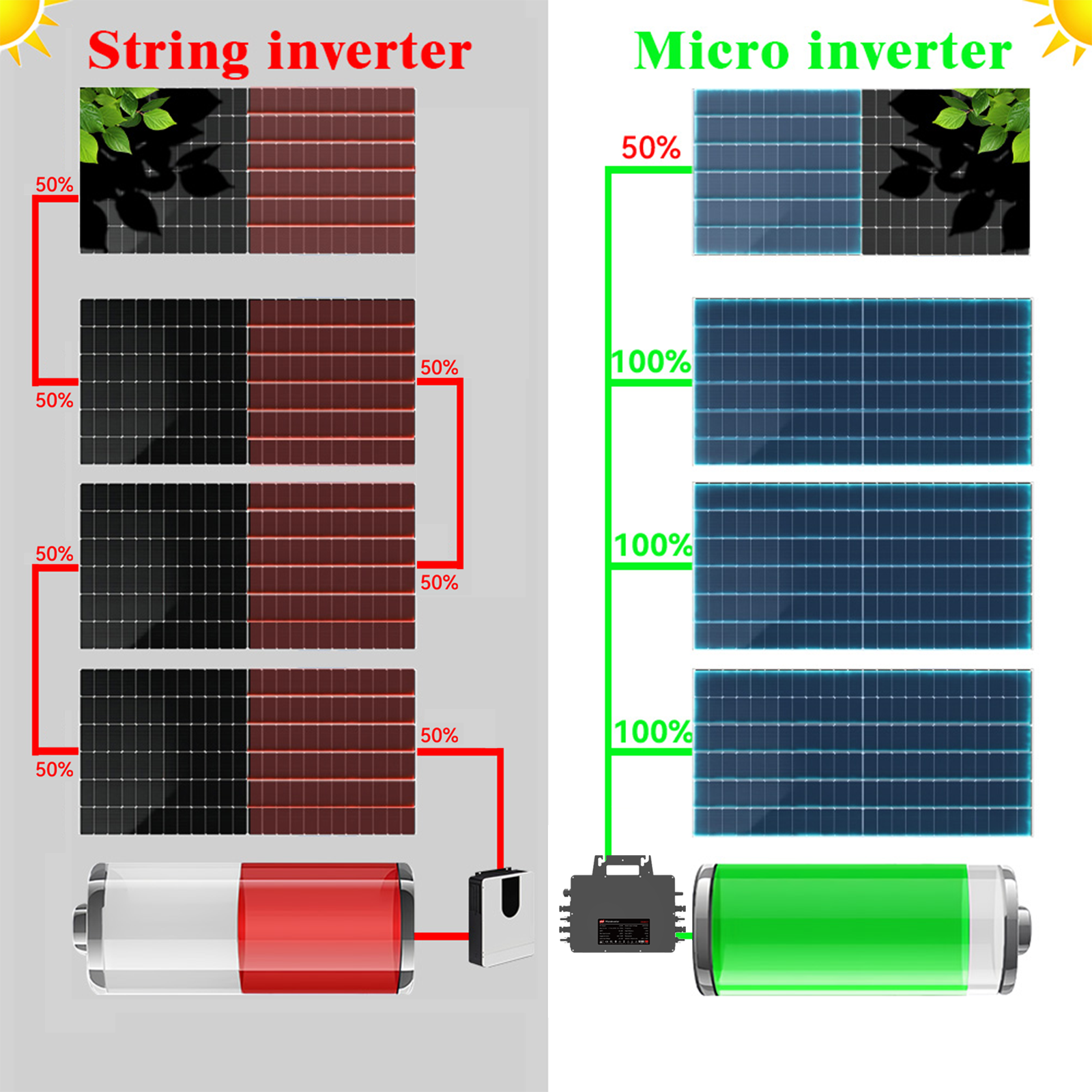

G7 series micro inverters is suitable for rooftop PV systems. The 4-channel independent photovoltaic monitoring and MPPT tracking in the device can maximize the energy harvest of PV system and avoid the energy loss from the mismatching and uneven illumination between each panel. The wifi communication in the system enables the individual panel status monitoring and is convenient for system maintenance.
Product Features
| Input Data (DC) | |
| Recommended PV Module Power (STC) Range | 4*500~720W |
| Operating voltage range (V) | 18~26 |
| Peak power MPPT voltage range (V) | 30~48 |
| Maximum input voltage (V) | 60 |
| Maximum input current (A) | 4*18 |
| Output Data (AC) | |
| Maximum continuous output power (VA) | 2500 |
| Maximum continuous output current (A) | 10.9A (230V), 11.5A (220V) |
| Nominal output voltage/Range (V) | 220V/230V(198-253V) |
| Adjustable Output Voltage Range(V) | 195.5V~264.5V |
| Nominal frequency//Range( (Hz) | 60/59.3~60.5Hz, 50/48~51Hz |
| Adjustable Output Frequency Range(Hz) | 45Hz~65Hz |
| Total harmonic distortion | <5% |
| Power factor(adjustable) | 0.99/0.8 leading…0.8 lagging |
| Efficiency | |
| Peak convert efficiency | >95% |
| CEC weighted efficiency | >93.5% |
| Nominal MPPT efficiency | >99.8% |
| Night power consumption (mW) | <100 |
| Mechanical Data | |
| Ambient temperature range (℃) | -40℃~ + 65℃ |

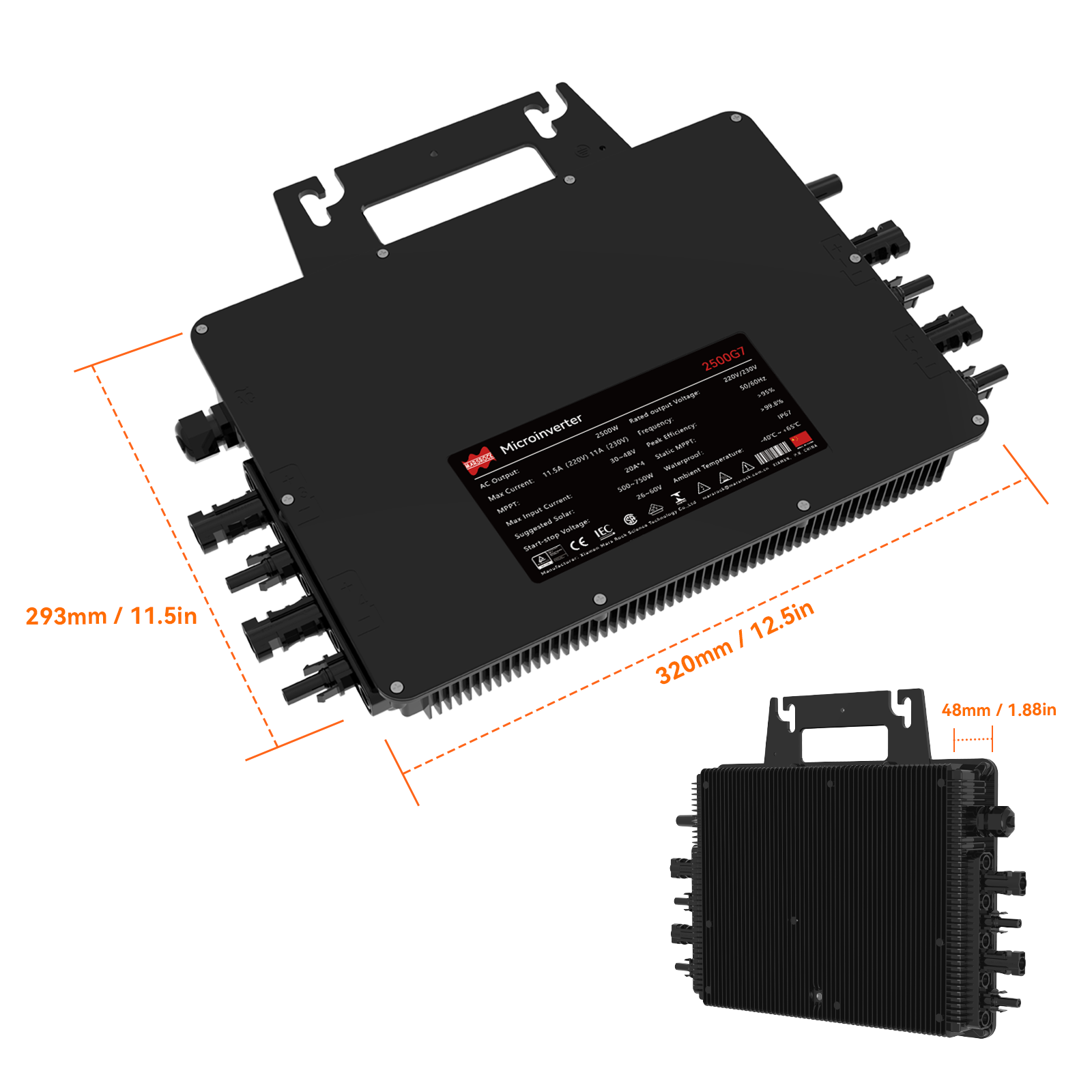

| Dimensions (W × H × D (mm)) | 320*293*48 |
| Weight (kg) | 6.4 |
| Altitude (m) | 2000 |

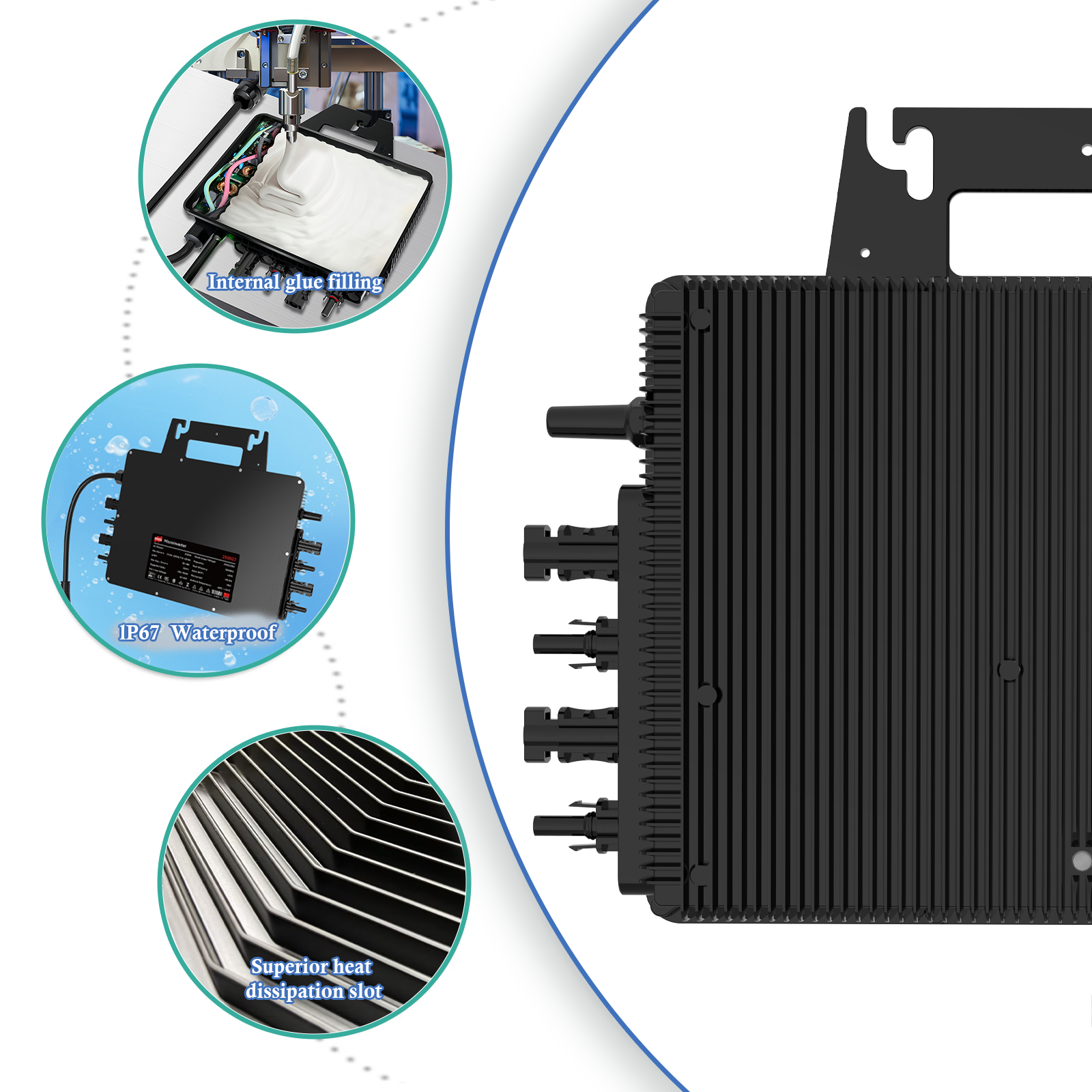

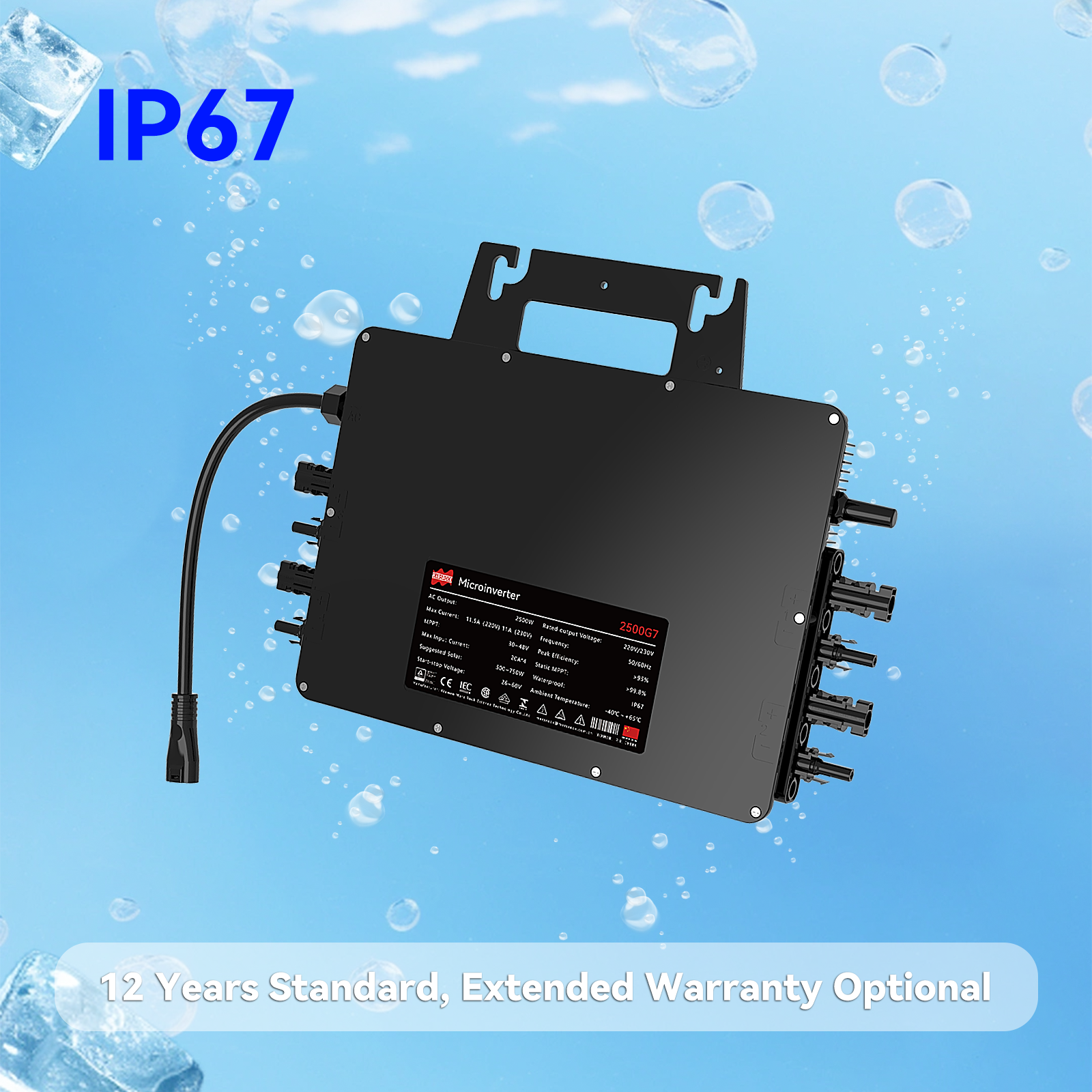

| Ingress protection | IP67 |

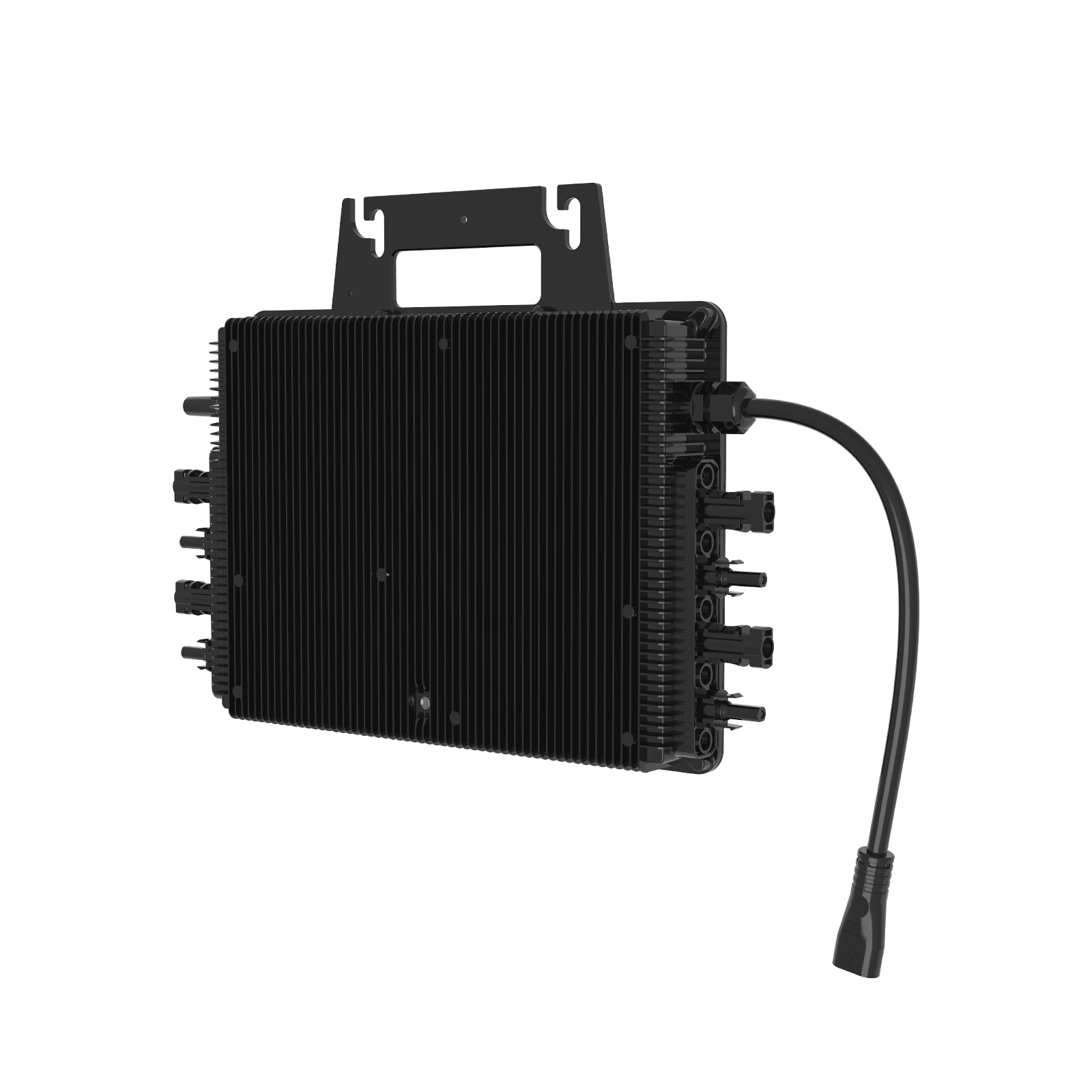

| Cooling | Natural Convection |
| Features | |
| Communication | Wi - Fi/802.11b/g/n 2.4GHz |
| Isolation Design | High Frequency Transformers, Galvanically Isolated |
| Warranty | 12 Years Standard; Extended Warranty Optional |
| Compliance | VDE 0124,VDE 0126;RD 1663,RD1699,EN50549 - 1,CEI 0 - 21: 2002; UNE217001/UNE217002/RD647;NB/T 32004 |
