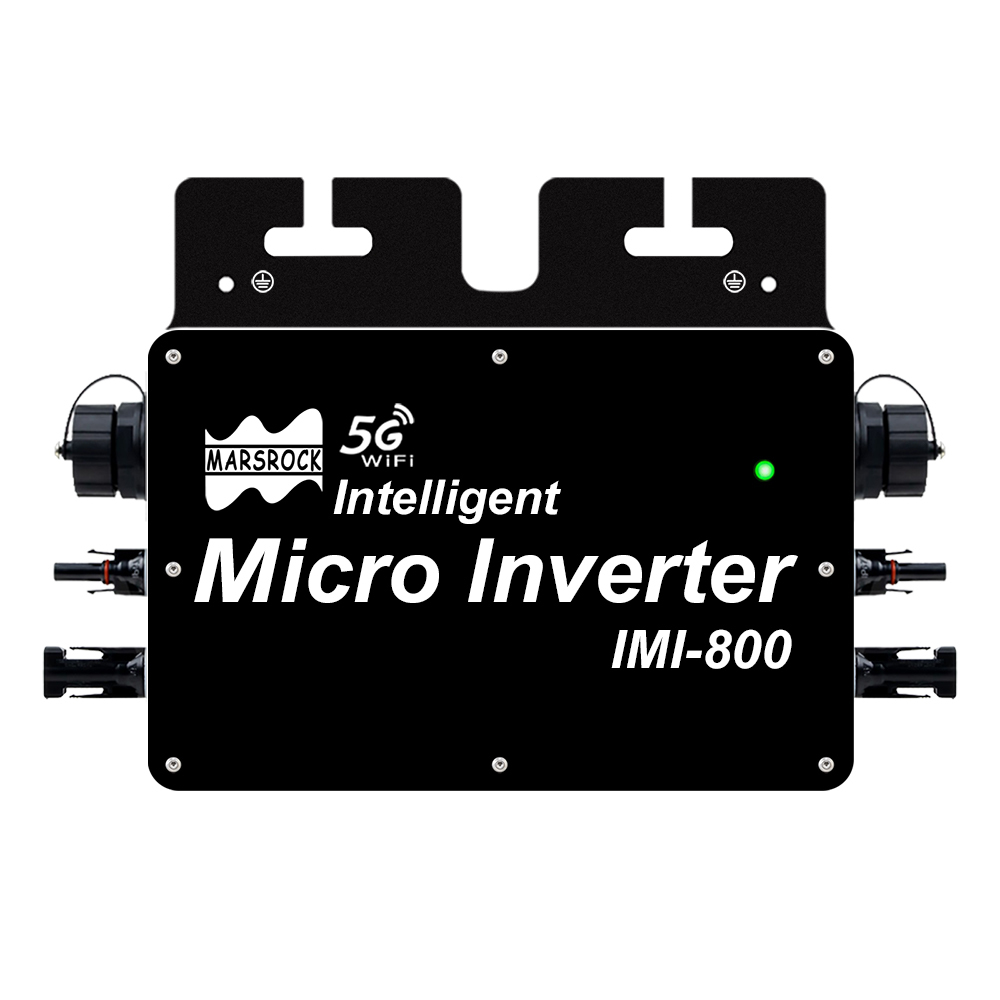

Product Parameter Table
|
Model |
IMI 800 |
|
Input Data (DC, PV) |
|
|
Number of Input MC4 Connector |
2 sets |
|
MPPT Voltage Range |
22V-48V |
|
Operation Voltage Range |
20V-50V |
|
Maximum Input Voltage |
52V |
|
Startup Voltage |
18V |
|
Maximum Input Power |
800W |
|
Maximum input Current |
12A*2 |
|
Output Data(AC) |
|
|
Single-Phase Grid Type |
120V&230V |
|
Rated Output Power |
800W |
|
Maximum Output Power |
800W |
|
Nominal Output Current |
@120VAC:5A/@230VAC:2.6A |
|
Nominal Output Voltage |
120VAC /230VAC |
|
Default Output Voltage Range |
@120VAC:80V-160V /@230VAC:180V-270V |
|
Nominal Output Frequency |
50Hz / 60Hz |
|
Default Output Frequency Range |
@50Hz:48Hz-51Hz/@60Hz:58Hz-61Hz |
|
Power Factor |
>0.99% |
|
Total Harmonic Distortion |
THD <5% |
|
Maximum Units per Branch |
@120VAC:5units /@230VAC: 10units |
|
Efficiency |
|
|
Peak Efficiency |
95% |
|
Nominal MPPT Efficiency |
99.50% |
|
Night Power Consumption |
<1w |
|
Mechanical Data |
|
|
Operating Ambient Temperature Range |
-40℃ to +65℃ |
|
Storage Temperature Range |
-40°C to +85C |
|
Dimensions(W*H *D) |
230mmx200mm x 40mm |
|
(not include connectors and cable) |
|
|
Weight |
2.45kg |
|
Max Current of AC Bus Cable |
20A |
|
Waterproof Grade |
IP65 |
|
Cooling Mode |
Natural Convection- No Fans |
|
Other Features |
|
|
Communication |
WIFI(Cloud monitoring) |
|
Transformer Design |
High Frequency Transformers,Galvanically Isolated |
|
Integrated Ground |
Equipment ground is provided by the PE in the AC cable. |
|
No additional ground is required. |
|
|
Protection Functions |
lsolated Island Protection,Voltage Protection, |
|
Frequency Protection, |
|
|
Temperature Protection,Current Protection, etc. |
|
|
Design Compliance |
EN IEC61000-3-2:2019+A1:2021, |
|
EN 61000-3-3:2013+A1:2019+A2:2021, |
|
|
EN IEC55014-2:2021,EN IEC55014-2:2021, |
|

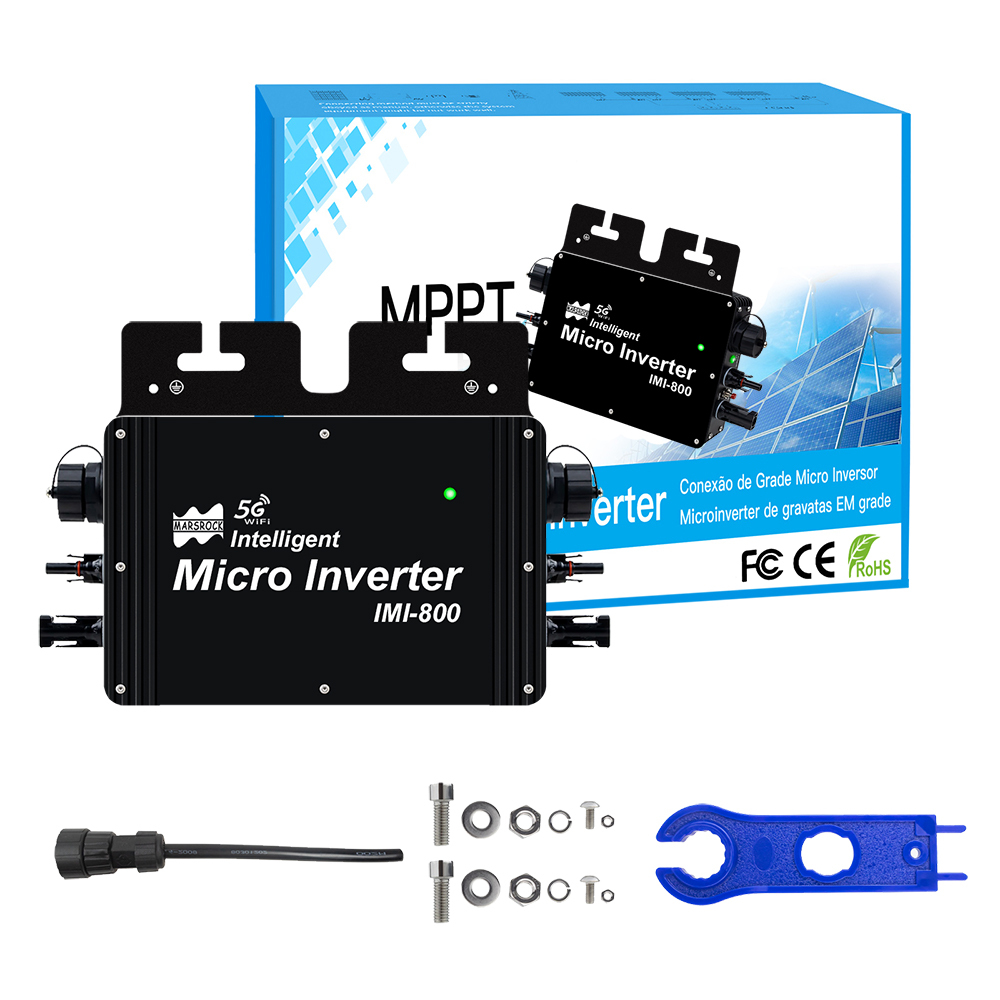

Product Features

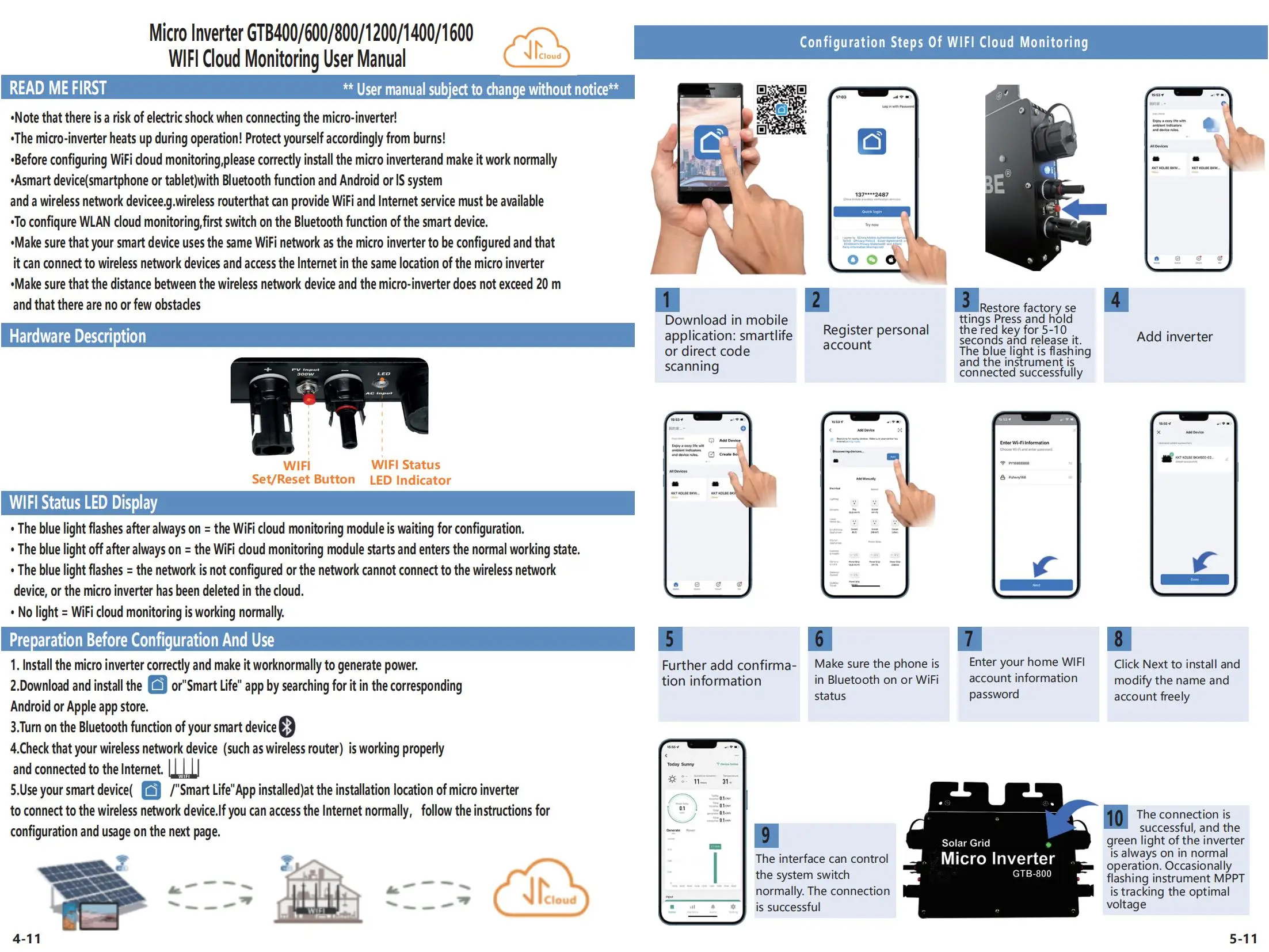

PV Monitoring System Operating Instructions
